SPECIFICATIONS



Application: Home Security



High-concerned chemical: None

Model Number: dual beam sensor photocell

Product size: 171*82*80mm

Smart home platform: Other

Type: infrared

Working power supply: DC12-24V :AC11-18V

sensor: Photoelectric Dual Beam Motion Sensor

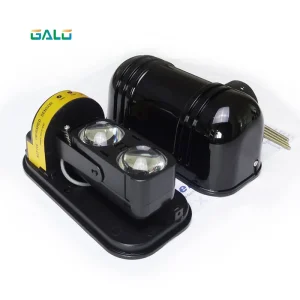

Waterproof Dual Beam Sensor Active Infrared Intrusion Detector IR 20m~150m Outdoor Perimeter Wall Barrier Fence for GSM alarm

Infrared transmission distance is 20-150m

Light-source: Infrared digital pulse
Response speed: 50-700m/s
Alarm output-normal: Normal close and normal open(NC&NO), contact point capacity, AC/DC30V 0.5mA Max
Operating voltage: DC 12V—24V, AC 10-18V
Operating temperature: -25°C—55°C
Operating humidity : 5%—95% (RH)
Tamper output: contact point output NC,capacity DC 24V 0.5Amax
Horizontal angle adjustable: 180°(±90°)
Vertical angle adjustable: 20°±10°

Features:

1) Intelligent power transmission: independent development of the chip can automatically sense ambient changes  According to the environmental conditions to automatically adjust to the radio's transmit power, greatly extending the life of the launching tube, while also lowering power.

2) Cable, bus compatible, holographic spot real-time reporting.

3) Full-function diagnostics, environmental adaptive, fault lock.

4) Digital Fuzzy Artificial Intelligence Identification: Using artificial intelligence fuzzy judgments, false positives to a minimum.

5) Patent coaxial dual focal length precision optical aspheric focusing lens.

6) dedicated DSP chip, patented multi-dimensional fault-tolerant, real detection alarm technology.

7) optical lens up and down while structural adjustments, to adjust faster and more accurate.

8) Professional CPU chips, strong anti-interference
